INDUSTRIAL Round Base T-nut (Zinc)

$0.36

The t-nut to choose for commercial high use, steep walls, and roof sections.

Availability: 18655 in stock

Overview

This is the flagship t-nut in our line. There are other similar models on the market however, we have this model custom made for us. We wanted a 1/32" thicker barrel wall and three attachment screws. The Industrial t-nut is approximately 40% stronger than our standard Round Base T-nut.

3/8-16 zinc round t-nuts

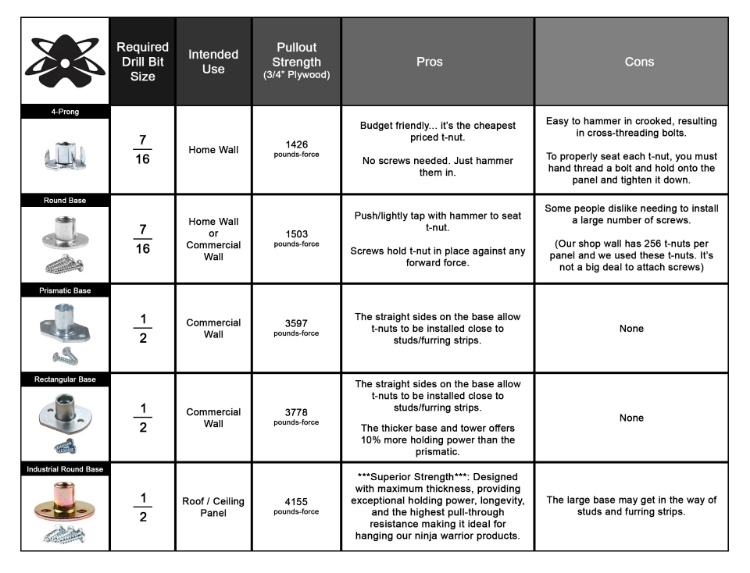

22% stronger than traditional t-nuts. 1824 pounds of force required to pull the t-nut through a 3/4" ACX plywood panel.

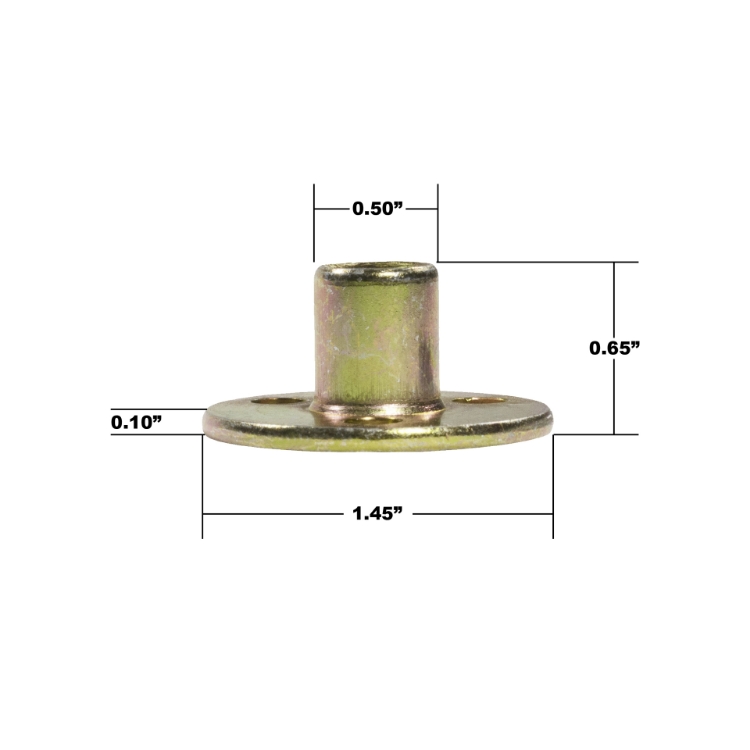

The base measures 1-3/8" which is considerably larger than the industry standard.
The barrel height measures 9/16".

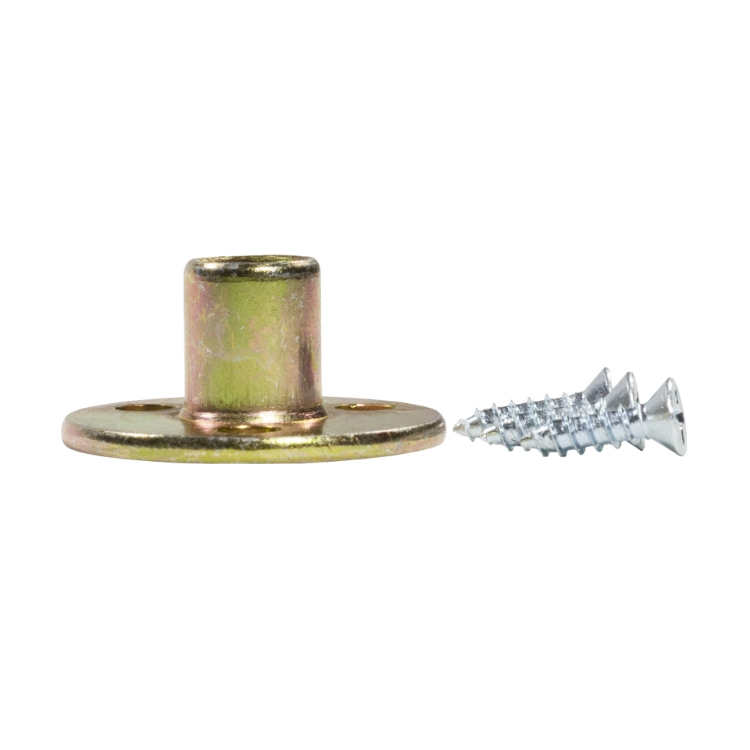

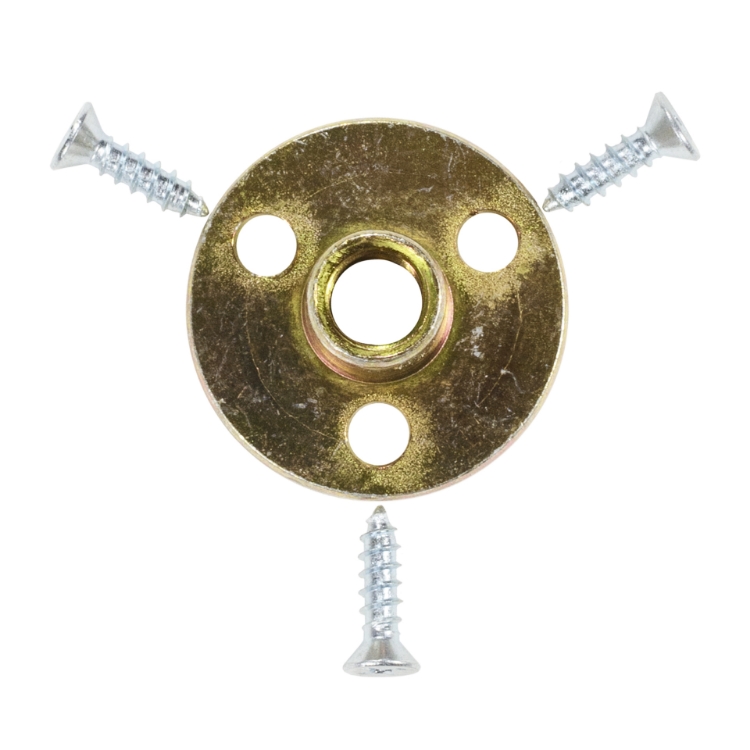

Attaches using #10 x 5/8" screws which are included
1/32" thicker barrel wall when compared to the standard version.
Great for roofs and areas of your wall where high leverage products are being used such as our famous Ninja Warrior Products.
install by drilling a 1/2" hole from the front of the panel through to the back, then attach to the backside of your panel using the included screws.

Click here to read about ZINC VERSUS STAINLESS STEEL.

Click here for T-NUT LAYOUTS

3/8-16 zinc round t-nuts
22% stronger than traditional t-nuts. 1824 pounds of force required to pull the t-nut through a 3/4" ACX plywood panel.
The base measures 1-3/8" which is considerably larger than the industry standard.
The barrel height measures 9/16".
Attaches using #10 x 5/8" screws which are included
1/32" thicker barrel wall when compared to the standard version.
Great for roofs and areas of your wall where high leverage products are being used such as our famous Ninja Warrior Products.
install by drilling a 1/2" hole from the front of the panel through to the back, then attach to the backside of your panel using the included screws.

Click here to read about ZINC VERSUS STAINLESS STEEL.

Click here for T-NUT LAYOUTS
