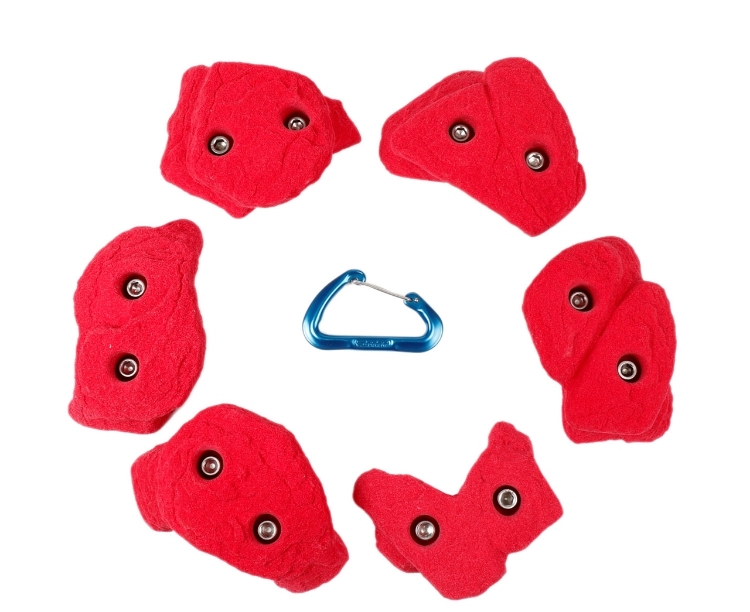

2 Bolt Playground Climbing Holds - Granite - 6 Pack

Overview

CONTRACTOR'S SPECIFICATIONS SHEET

CONCRETE ANCHOR SPEC SHEET

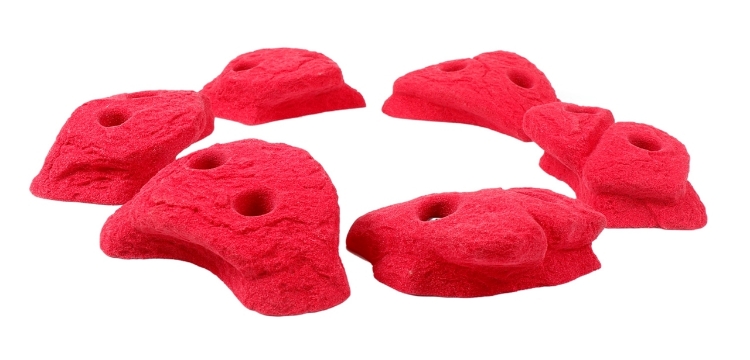

Two-bolt attachment ensures the hold will never spin. Each bolt hole has been tooled to the same depth to allow you to choose a bolt to not pass through your walls, keeping the inspectors happy...and the kids safe!

Excellent climbing rocks for commercial playgrounds; great holds for little hands.

• WHEN PRE-PLACING CONCRETE ANCHORS:
  • The hold needs 3/4" of the bolt to meet the hold's back, plus the thickness of your Soft Play Rubber, plus 1-1/2" embedment depth for the concrete hollow set anchor.
  • Example:
    • You have 3" of Soft Play Rubber
    • 3/4"(Hold) + 3"(Rubber) + 1-1/2"(Embedment) = 5-1/4"
    • Bolts only come in half sizes, so in this case, you need a 5-1/2" bolt.
• WHEN INSTALLING HOLDS ON TOP OF RUBBER THAT IS ALREADY IN PLACE AND NO ANCHORS WERE PRE-PLACED:
  • Example:
    • You have 3" of Soft Play Rubber
    • 3/4"(Hold) + 3"(Rubber) + 2-1/2"(Embedment) = 6-1/4"
    • Bolts only come in half sizes, so in this case, you need a 6-1/2" Tapcon Anchor bolt.
